Cable Fittings
Leading Manufacturers, Exporters, Wholesaler and Importer of Aluminum Fiberglass Sleeving, Brass Nickel-Plated Cable Gland, Cable Gland Cover, Flexible Spiral Conduit Pipe, Heat Shrink Tubing, Hex Plastic Spacer, Hexagonal Head Screws, Hexagonal Nuts, Nylon Cable Gland, Nylon Push Mount Cable Tie, PET Expandable Braided Sleeving, Polyester Self Wrap Sleeving, Round Plastic Spacer, Round Washers, Screw Mount Cable Tie Holder, Silicone Coated Fiberglass Sleeving, Standard Cable Ties and Standard Grommets from Bangalore.

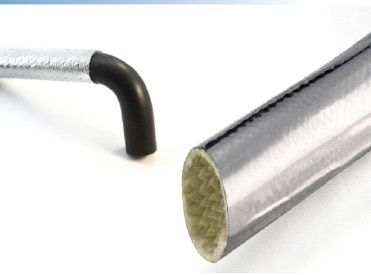

| Business Type | Manufacturer, Supplier |
| Color | White |
| Material | Fiberglass Filament And Aluminum Foil-60°C To +260°C (Peak +300°C) |
| Operating Temp | -60°C to +260°C (Peak +300°C) |
| Size | 10mm to 50mm |
| Flammability | Self Extinguishable |
| Shelf Life | More Than 10 Years |
| Approval | ROHS,Reach, CE |
Features :
- Superior Thermal Properties
- Excellent Low Temperature Flexibility
- Good Flame Retardant performance
- High level Thermal Protection
- Excellent protection against radiant heat
- Oil Resistance
- Halogen Free
- High Flexibility
Applications :
- Tubing and Hoses
- Instrumental Panel Harness
- Engine Compartment Harness
- A/c Lines
- Control Cables
- Tubing
- Hybrid Vehicles
| Business Type | Manufacturer, Supplier |
| Material | Brass |
| Finishing | Nickel Plated |
| Lamellar Insert | PA 6 |
| Sealing Ring | CR |
| O-Ring | NBR-Oz |
| Protection Class | IP66/ IP68 - 5 bar/ IP69k |
| Test Standard | UL 514B |
| Strain Relief | DIN EN 62444 Tab. 2A |
| Range of Temperature | -30 °C to +100 °C |
| Business Type | Manufacturer, Supplier |
| Color | Black, Grey |
| Shape | Round |
| Material | Nylon 6/6 & Brass |
| Operating Temp | -30°C to +100°C |
| Thread | PG & Metric |
| Protection class | IP54 / IP68 (with o-ring) |
| Approval | ROHS,CE, REACH, |
Features :
- To Block entry holes for
- Cable gland when not in use
- UV resistance
- Halogen free
| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Material | Polyamide PA6 & Polypropylene |
| Operating Temp | -40°c +120°c, Short Term 150°c |
| Flammability class | UL94 V2, V0 |
| Approval | ROHS,CE, REACH, UL |
Features :
- High fatigue life
- High impact strength
- Halogen free
- Self extinguishing
- High abrasion restance
- High UV resistance (Black)
- Full-shrink packing
| Business Type | Manufacturer, Supplier |
| Material | Polyolefin |
| Color | Available in Many Colors |
| Country of Origin | India |
| Shrink Ratio | 2:1, 3:1 |
| Thermal Temp. | -55°C to +125°C |
| Sizes | 0.80MM to 180mm |
| Flammability | UL1581 - VW–1, V0 |
| Approval | ROHS, UL, CE, REACH |
Features :
- UL and RoHS compliant
- Excellent electrical, physical and chemical properties
- Minimum shrink temperature: 75℃
- Fully shrink temperature: 120℃
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
- High Flexibility

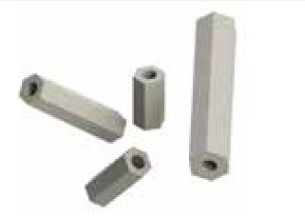

| Business Type | Manufacturer, Supplier |
| Material | Plastic |
| Shape | Hex |
| Color | White |
| Size | Standard |
| Packaging Type | Plastic Packet |
| Country of Origin | India |
| Business Type | Manufacturer, Supplier |
| Material | Metal |
| Color | White |
| Surface Treatment | Polished |
| Size | Standard |
| Diameter | 5-10mm |
| Country of Origin | India |
| Business Type | Manufacturer, Supplier |
| Material | Metal |
| Surface Finishing | Polished |
| Color | Grey |
| Size | Standard |
| Thickness | 5-10mm |
| Country of Origin | India |
| Business Type | Manufacturer, Supplier |
| Material | Nylon 6/6 |
| Color | Black And Grey Other Colours On Request |
| Thread | PG Standard & Long Mounting Thread |
| Operating Temp | -30°c to +100°c (+150°c - Short Term) |
| Flammability | UL94 V-2, UL94 V0 |
| Approval | ROHS, UL, CE, REACH, |
| Business Type | Manufacturer, Supplier |
| Material | Nylon |
| Color | Grey |
| Application | Mounting Cable |
| Pattern | Plain |
| Type | Push Mount |
| Thickness | 5-10mm |
| Country of Origin | India |
| Business Type | Manufacturer, Supplier |
| Color | Black, Other Colors on request |
| Material | PET Polyester And PA Nylon Monofilament |
| Monofilament | Pet - 0.25mm & Pa – 0.38mm |
| Thermal Class | Class-F |
| Working Temp | -70°C to +150°C |
| Size | 6mm to 65mm |
| Expandability | 1:2 and 1:3 (as per Customer Req.) |
| Approval | ROHS,Reach, CE |
| Cuting Tool | HOT Knife |
Features :
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
Applications :
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
| Business Type | Manufacturer, Supplier |
| Material | Polyester Multifilament And PET Monofilament - 0.22mm |
| Color | Black |
| Working Temp | -70°C to +150°C |
| Size | 5.0mm to 38mm |
| Over Lap | 25% and 50% |
| Approval | ROHS,Reach, CE |
Features :
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
Applications :
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
| Business Type | Manufacturer, Supplier |
| Surface Finish | Polished |
| Country of Origin | India |
| Shape | Round |
| Material | Plastic |
| Color | Grey |
| Size | Standard |
| Business Type | Manufacturer, Supplier |
| Surface Finishing | Polished |
| Shape | Round |
| Color | White |
| Size | Standard |
| Certification | ISI Certified |
| Thickness | 5-10mm |
| Country of Origin | India |
| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Feature | Durable, Flexible, Good Quality |
| Material | Nylon |
| Finishing | Polished |
| Thickness | 5-10mm |
| Color | White |
| Business Type | Manufacturer, Supplier |
| Color | Natural & Black,Other Colors On Request |
| Material | Fiberglass Multi Filament And Silicone Elastomer |
| Thermal Class | “H” Class |
| Thermal Temp | -60°C to +180°C (Peak +200°C) |
| Sizes | 0.50MM to 50mm |
| Break Down Volt | 1.5kv,4kv,7kv |
| Flammability | UL 1441 - VW–1 (UL Grade–A) |
| Expandability | 1:2 (as per Customer Requirement) |
| Approval | ROHS, UL, CE, REACH |
Features :
- Superior Electrical Properties
- Excellent Low Temperature Flexibility
- Flame Retardant and Insulation performance
- High level Thermal Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
- High Flexibility
Applications :
- Rotation machine Core Insulation
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Motor and Generator Lead Wire protection Tubing
- Oil Filled Transformers Lead wire protection
| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Thickness | 1.5-2mm |
| Type | Flexible |
| Application | Tie Electrical Cables |
| Color | White |
| Material | Plastic |
| Business Type | Manufacturer, Supplier |
| Material | Rubber |
| Color | Black |
| Application | Industiral |
| Country of Origin | India |
| Size | Stadnard |
| Shape | Round |
